Hello sun exposure...

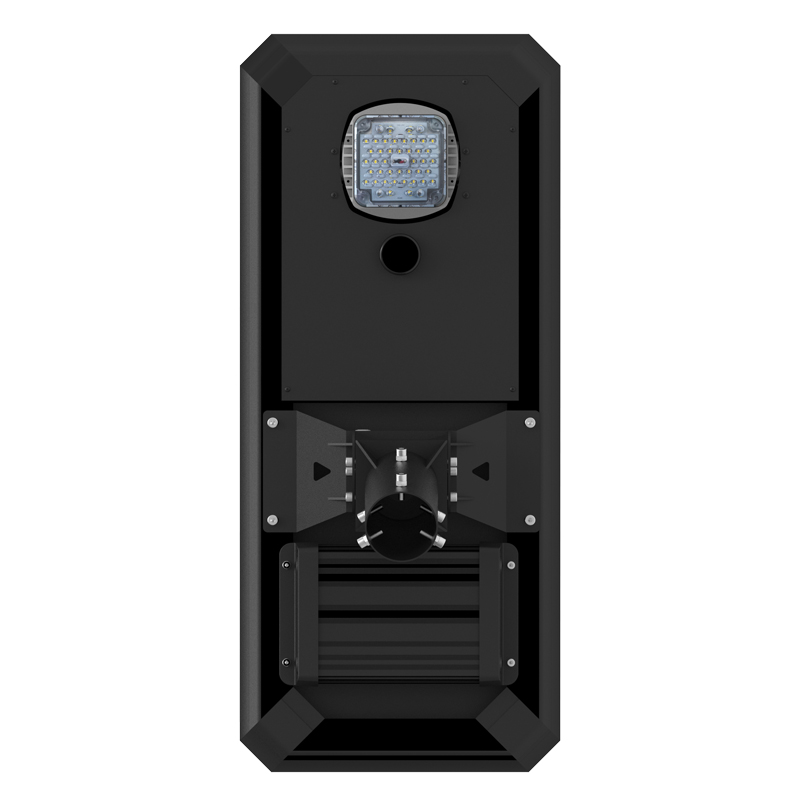

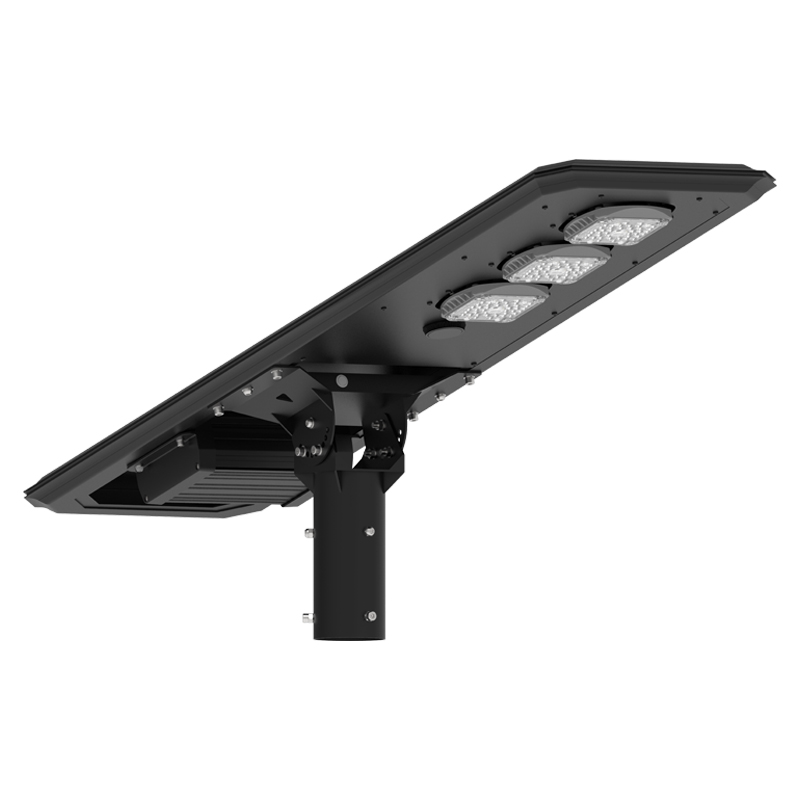

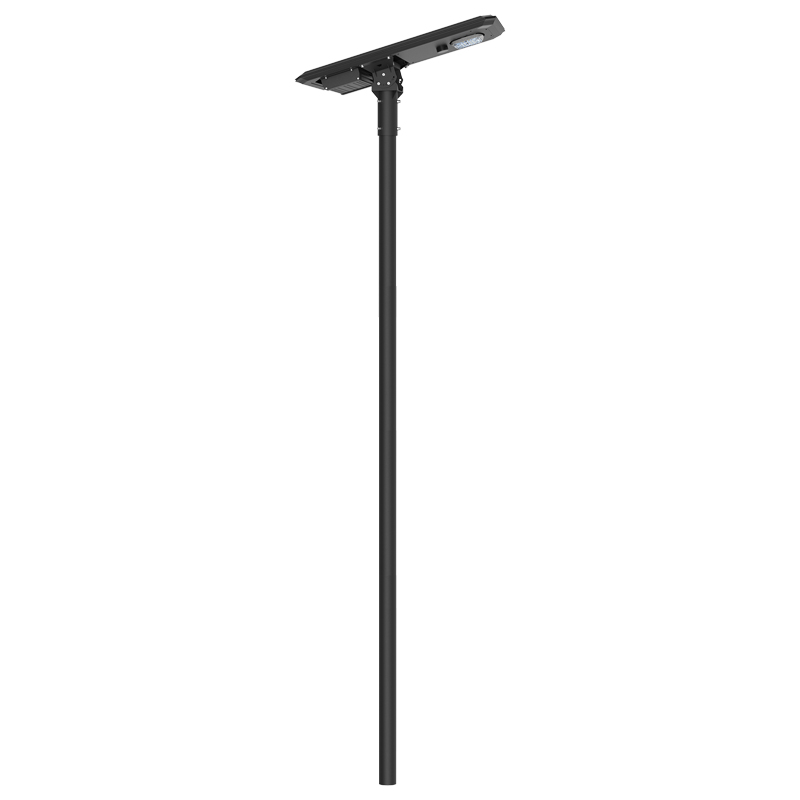

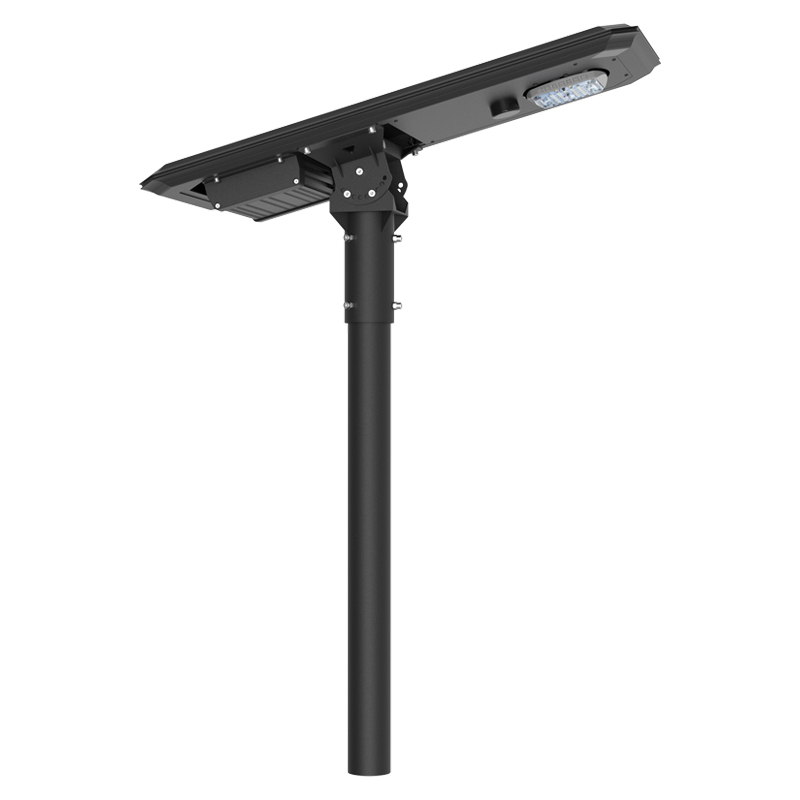

VENUS-EV is an advanced solar street light system with all components integrated into a single unit. It features independently tiltable solar panels and LED modules, optimizing solar energy capture and road illumination. Designed for simple installation and operation, this unit is an efficient solution for area lighting.
Recognizing the challenge where the ideal direction for street lighting does not always match the optimal orientation for solar panels, we’ve engineered a solution with independently tiltable solar panels and LED modules. This innovative design ensures maximum solar energy capture and targeted area illumination, effectively addressing this common issue in All in one solution.
Made with High pressure die-cast low-copper aluminum reaching IP66 protection class .Our Led module is equipped with PHILIPS LUX-EON HE PLUS High efficiency Chips - delivering an impressive 196 Lumens per Watt efficacy. Furthermore, the luminaire adheres to DARK SKY requirements for light pollution, ensuring minimal upward lighting at just 0.31%.
Suitable for:
Park & garden
Campsites
Places
Pedestrian
Pathway & Hike
Main Roads
Small Roads
Nominal flux
Nominal power
Efficiency
Lighting Led
Lighting Lifetime
Lighting Optics
Light height
3920 Lumens
20 watts
196 Lumens/Watts
PHILIPS Luxeon 30-30
Over 100.000 Hrs - LM80
TI / T35 / 2300 to 6500K
From 3 to 4 meters
Battery Technology
Battery Capacity
Battery Autonomy
Battery charging time
Battery Lifespan
Battery working temp
Lithium Iron Phosphate LIFEPO4
230 Wh
> 24 hours at full charge - 4 Rainy
Days back up
5/6 Hours
Over 5000 CYCLES @ 50% DOD
over 10y lifetime
-10°C to 70 °C (optional -40°C TO 85 °C )
DOWNLOAD SPEC SHEET
Nominal flux
Nominal power
Efficiency
Lighting Led
Lighting Lifetime
Lighting Optics
Light height
5880 Lumens
30 watts
196 Lumens/Watts
PHILIPS Luxeon 30-30
Over 100.000 Hrs - LM80
TI / T35 / 2300 to 6500K
From 3 to 4 meters
Battery Technology
Battery Capacity
Battery Autonomy
Battery charging time
Battery Lifespan
Battery working temp
Lithium Iron Phosphate LIFEPO4
307 Wh
> 24 hours at full charge - 4 Rainy
Days back up
5/6 Hours
Over 5000 CYCLES @ 50% DOD
over 10y lifetime
-10°C to 70 °C (optional -40°C TO 85 °C )
DOWNLOAD SPEC SHEET
Nominal flux
Nominal power
Efficiency
Lighting Led
Lighting Lifetime
Lighting Optics
Light height
7840 Lumens
40 watts
196 Lumens/Watts
PHILIPS Luxeon 30-30
Over 100.000 Hrs - LM80
TI / T35 / 2300 to 6500K
From 3 to 4 meters
Battery Technology
Battery Capacity
Battery Autonomy
Battery charging time
Battery Lifespan
Battery working temp
Lithium Iron Phosphate LIFEPO4
307 Wh
> 24 hours at full charge - 4 Rainy
Days back up
5/6 Hours
Over 5000 CYCLES @ 50% DOD
over 10y lifetime
-10°C to 70 °C (optional -40°C TO 85 °C )
DOWNLOAD SPEC SHEET
Nominal flux
Nominal power
Efficiency
Lighting Led
Lighting Lifetime
Lighting Optics
Light height
9800 Lumens
50 watts
196 Lumens/Watts
PHILIPS Luxeon 30-30
Over 100.000 Hrs - LM80
TI / T35 / 2300 to 6500K
From 3 to 4 meters
Battery Technology
Battery Capacity
Battery Autonomy
Battery charging time
Battery Lifespan
Battery working temp
Lithium Iron Phosphate LIFEPO4
307 Wh
> 24 hours at full charge - 4 Rainy
Days back up
5/6 Hours
Over 5000 CYCLES @ 50% DOD
over 10y lifetime
-10°C to 70 °C (optional -40°C TO 85 °C )
DOWNLOAD SPEC SHEET
Nominal flux
Nominal power
Efficiency
Lighting Led
Lighting Lifetime
Lighting Optics
Light height
11760 Lumens
60 watts
196 Lumens/Watts
PHILIPS Luxeon 30-30
Over 100.000 Hrs - LM80
TI / T35 / 2300 to 6500K
From 5 to 7 meters
Battery Technology
Battery Capacity
Battery Autonomy
Battery charging time
Battery Lifespan
Battery working temp
Lithium Iron Phosphate LIFEPO4
538 Wh
> 24 hours at full charge - 4 Rainy
Days back up
5/6 Hours
Over 5000 CYCLES @ 50% DOD
over 10y lifetime
-10°C to 70 °C (optional -40°C TO 85 °C )
DOWNLOAD SPEC SHEET
Nominal flux
Nominal power
Efficiency
Lighting Led
Lighting Lifetime
Lighting Optics
Light height
15680 Lumens
80 watts
196 Lumens/Watts
PHILIPS Luxeon 30-30
Over 100.000 Hrs - LM80
TI / T35 / 2300 to 6500K
From 5 to 7 meters
Battery Technology
Battery Capacity
Battery Autonomy
Battery charging time
Battery Lifespan
Battery working temp
Lithium Iron Phosphate LIFEPO4
691.2 Wh
> 24 hours at full charge - 4 Rainy
Days back up
5/6 Hours
Over 5000 CYCLES @ 50% DOD
over 10y lifetime
-10°C to 70 °C (optional -40°C TO 85 °C )
DOWNLOAD SPEC SHEET
Nominal flux
Nominal power
Efficiency
Lighting Led
Lighting Lifetime
Lighting Optics
Light height
19600 Lumens
100 watts
196 Lumens/Watts
PHILIPS Luxeon 30-30
Over 100.000 Hrs - LM80
TI / T35 / 2300 to 6500K
From 6 to 8 meters
Battery Technology
Battery Capacity
Battery Autonomy
Battery charging time
Battery Lifespan
Battery working temp
Lithium Iron Phosphate LIFEPO4
768 Wh
> 24 hours at full charge - 4 Rainy
Days back up
5/6 Hours
Over 5000 CYCLES @ 50% DOD
over 10y lifetime
-10°C to 70 °C (optional -40°C TO 85 °C )
DOWNLOAD SPEC SHEET
Nominal flux
Nominal power
Efficiency
Lighting Led
Lighting Lifetime
Lighting Optics
Light height
23520 Lumens
120 watts
196 Lumens/Watts
PHILIPS Luxeon 30-30
Over 100.000 Hrs - LM80
TI / T35 / 2300 to 6500K
From 6 to 8 meters
Battery Technology
Battery Capacity
Battery Autonomy
Battery charging time
Battery Lifespan
Battery working temp
Lithium Iron Phosphate LIFEPO4
922 Wh
> 24 hours at full charge - 4 Rainy
Days back up
5/6 Hours
Over 5000 CYCLES @ 50% DOD
over 10y lifetime
-10°C to 70 °C (optional -40°C TO 85 °C )
DOWNLOAD SPEC SHEET
